Does a hot tub need a dedicated electrical circuit?

Yes. Hot tubs require their own dedicated circuit, typically 40-60A on a double-pole breaker, protected by a Class A GFCI breaker, separate from any other household circuit.

How far does the disconnect switch need to be from the hot tub?

Ontario Electrical Code requires the disconnect to be within sight of the tub but at least 1.5 metres back from the water’s edge, so it’s safely reachable without standing next to the tub.

What is bonding and why does a hot tub need it?

Bonding electrically ties together the tub’s pump, metal components, and nearby conductive surfaces like a metal ladder or deck framing, so there’s no voltage difference between them that could create a shock hazard in or around the water.

Can I plug a hot tub into a regular outdoor outlet?

No. Most hot tubs draw far more current than a standard outlet or extension cord is rated for, and code requires a dedicated hardwired circuit with GFCI protection, not a plug-in connection.

Is a permit required for hot tub electrical installation?

Yes, hot tub circuits require an ESA permit and inspection, which we pull and schedule as part of the job.

How much does hot tub electrical installation cost?

Cost depends on the tub’s amperage, the distance from your panel to the installation site, and how much bonding work is involved. We provide a clear quote after assessing your property.

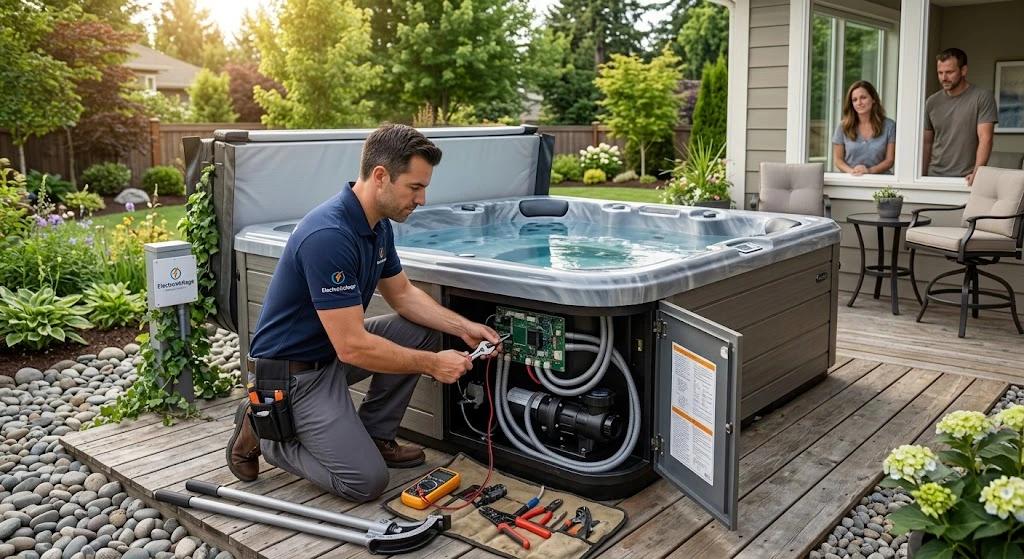

Hot Tub Electrical Installation

GFCI-protected dedicated circuits, disconnects, and bonding for hot tubs and spas, installed to Ontario Electrical Code.

Overview

A hot tub is one of the least forgiving electrical installations in a backyard: it’s a high-current 240V load sitting in and around water, and Ontario Electrical Code is specific about exactly how it has to be wired. We install the dedicated GFCI-protected circuit, the code-required disconnect, and the equipotential bonding grid that ties together the tub’s metal components, pump, and surrounding conductive surfaces, for both new hot tub and swim spa installations and replacements of an existing unit’s wiring. Every job is permitted and inspected by the Electrical Safety Authority (ESA) for homes across Toronto and the GTA.

Dedicated GFCI-protected circuits
Code-compliant disconnect placement
Full equipotential bonding grid

Call (416) 828-6976 for Hot Tub Electrical Installation

We provide hot tub electrical installation across Toronto and the GTA. Have a question first? Contact us or read more about our team.

Why It Matters

Most hot tubs draw enough current that they need their own 40–60A double-pole circuit, and that circuit has to run through a Class A GFCI breaker, ground-fault protection is not optional around a tub full of water and bathers. Code also requires a disconnect switch that’s within sight of the tub but set back at least 1.5 metres from the water’s edge, so it’s reachable in an emergency without anyone standing next to the tub to use it. The part that’s easy to miss without an electrician is bonding: the pump, heater, any metal ladder or rail, and the conductive surfaces within 1.5 metres of the tub all need to be tied into an equipotential bonding grid, which is what keeps stray voltage from creating a shock hazard in and around the water. Skipping or improperly wiring any one of these three pieces, the circuit, the disconnect, or the bonding, is what causes a hot tub installation to fail inspection or, worse, become a real safety hazard.

How Hot Tub Electrical Installation Works

1
Site & load assessment
We review the tub’s electrical specifications and your panel’s capacity, and confirm the planned location works for the required disconnect clearance and wiring route.
2
Circuit & disconnect installation
We run the dedicated GFCI-protected circuit from your panel and install the disconnect switch at the code-required distance from the tub.
3
Equipotential bonding
We bond the tub’s pump, metal components, and surrounding conductive surfaces into a proper bonding grid, exactly as Ontario Electrical Code requires.
4
ESA inspection & documentation
We pull the permit, schedule the ESA inspection, and hand you the certificate of inspection once the installation passes.

What Affects the Cost

Cost depends on the tub’s amperage and circuit size, the distance and routing between your panel and the installation site, whether your panel has spare capacity or needs an upgrade first, and how much bonding work the surrounding deck, patio, or landscaping requires.

Where We Provide Hot Tub Electrical Installation

We install and repair hot tub electrical installation for homes and businesses throughout the GTA. Pick your city for local details and to request a free quote:

Frequently Asked Questions

Does a hot tub need a dedicated electrical circuit?: Yes. Hot tubs require their own dedicated circuit, typically 40-60A on a double-pole breaker, protected by a Class A GFCI breaker, separate from any other household circuit.
How far does the disconnect switch need to be from the hot tub?: Ontario Electrical Code requires the disconnect to be within sight of the tub but at least 1.5 metres back from the water’s edge, so it’s safely reachable without standing next to the tub.
What is bonding and why does a hot tub need it?: Bonding electrically ties together the tub’s pump, metal components, and nearby conductive surfaces like a metal ladder or deck framing, so there’s no voltage difference between them that could create a shock hazard in or around the water.
Can I plug a hot tub into a regular outdoor outlet?: No. Most hot tubs draw far more current than a standard outlet or extension cord is rated for, and code requires a dedicated hardwired circuit with GFCI protection, not a plug-in connection.
Is a permit required for hot tub electrical installation?: Yes, hot tub circuits require an ESA permit and inspection, which we pull and schedule as part of the job.
How much does hot tub electrical installation cost?: Cost depends on the tub’s amperage, the distance from your panel to the installation site, and how much bonding work is involved. We provide a clear quote after assessing your property.
