What voltage do welding disconnects and plugs come in?

We install welding disconnects and plugs at 208V, 240V, 480V, and 600V, matched to your welder’s nameplate rating and whether it runs on single-phase or three-phase power.

Why does a welder need a pin-and-sleeve plug instead of a standard outlet?

Pin-and-sleeve plugs are built for repeated connect/disconnect cycles and rougher shop floor conditions than a standard receptacle, and they’re rated for the higher current draw industrial welders need.

Do I need a dedicated circuit for a welder?

Yes, welders draw high inrush current when striking an arc and sustained load during use, and sharing a circuit with other equipment risks nuisance trips or an overloaded circuit. We size a dedicated circuit to the welder’s actual load.

Can you match the plug configuration to my specific welder?

Yes, we confirm the welder’s nameplate voltage, amperage, and phase before selecting the disconnect and plug configuration, so the installation matches the equipment rather than a generic setup.

Do you install welding disconnects for auto body and fabrication shops?

Yes, we install welding circuits and disconnects for auto body shops, fabrication shops, and manufacturing floors, sized to whatever welding equipment the shop runs.

How much does welding plug installation cost?

Cost depends on the welder’s voltage and amperage, distance from your existing panel, whether the panel has spare capacity, and the plug configuration required. We provide a clear quote after reviewing your equipment and panel.

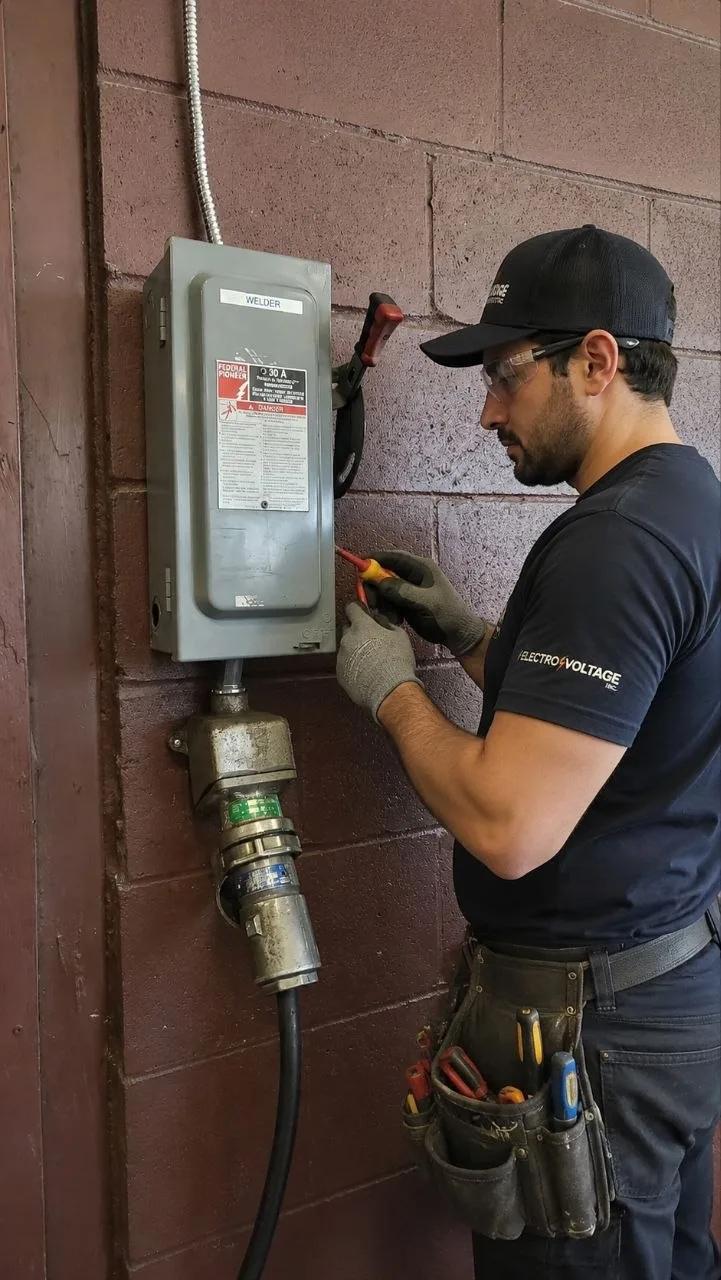

600V Welding Plug Installation

600V welding disconnect and pin-and-sleeve plug installation for industrial and commercial shops running heavy-duty welding equipment.

Overview

Industrial welders need more than a standard outlet: a properly sized disconnect, a dedicated circuit rated for the welder’s amperage draw, and a pin-and-sleeve plug and receptacle built to handle repeated connect/disconnect cycles on a shop floor. We install and wire 600V (and 208V/240V/480V) welding disconnects and plugs for fabrication shops, auto body shops, and manufacturing floors, sizing the circuit, breaker, and disconnect to your welder’s actual nameplate load rather than a generic estimate. Electrovoltage installs welding plug and disconnect circuits for industrial and commercial properties across Toronto and the GTA, and it’s a common addition alongside our industrial electrician and high bay lighting work.

Dedicated circuits sized to welder nameplate load
Locking disconnects for safe isolation
Pin-and-sleeve plugs built for shop floor use

Call (416) 828-6976 for 600V Welding Plug Installation

We provide 600v welding plug installation across Toronto and the GTA. Have a question first? Contact us or read more about our team.

Related Services

Industrial Electrician

Fault finding, diagnostics and electrical maintenance for industrial and production facilities.

High Bay Lighting Installation

LED high bay lighting installation and retrofits for warehouses, shops and industrial facilities, wired for even coverage and lower energy costs.

Why It Matters

Welding equipment draws differently than most shop machinery: high inrush current when the arc strikes, sustained heavy draw during a weld, and duty cycles that vary by process (MIG, TIG, stick, or a multi-process machine). A circuit sized for a lighter load trips breakers mid-weld or, worse, runs hot without tripping at all. A locking disconnect matters just as much as the circuit itself: it lets a shop isolate the welder for maintenance or when it’s not in use, and a pin-and-sleeve plug (rather than a standard twist-lock) is built for the abuse of a welding bay, repeated plugging and unplugging, exposure to dust and metal debris, and the mechanical strain of a heavy cable being dragged across a shop floor. Getting the voltage, amperage, and plug configuration matched to the actual welder nameplate, not a rough guess, is what keeps the circuit safe and the equipment running at full output.

How 600V Welding Plug Installation Works

1
Welder & load assessment
We check the welder’s nameplate for voltage, amperage, and duty cycle, and confirm your panel has capacity for the dedicated circuit it needs.
2
Circuit & disconnect sizing
We size the breaker, wire gauge, and disconnect to the welder’s actual draw, and select the correct pin-and-sleeve plug and receptacle configuration.
3
Installation & wiring
We run the dedicated circuit, mount the disconnect, and install the plug and receptacle, positioned for safe, practical access on the shop floor.
4
Testing & documentation
We test the circuit under load, confirm the disconnect isolates cleanly, and provide ESA inspection documentation where the installation requires a permit.

What Affects the Cost

Cost depends on the welder’s voltage and amperage rating, how far the welding station is from your existing panel or service, whether the panel has spare capacity or needs an upgrade first, and the plug and receptacle configuration required (single-phase or three-phase, and current rating).

Where We Provide 600V Welding Plug Installation

We install and repair 600v welding plug installation for homes and businesses throughout the GTA. Pick your city for local details and to request a free quote:

Frequently Asked Questions

What voltage do welding disconnects and plugs come in?: We install welding disconnects and plugs at 208V, 240V, 480V, and 600V, matched to your welder’s nameplate rating and whether it runs on single-phase or three-phase power.
Why does a welder need a pin-and-sleeve plug instead of a standard outlet?: Pin-and-sleeve plugs are built for repeated connect/disconnect cycles and rougher shop floor conditions than a standard receptacle, and they’re rated for the higher current draw industrial welders need.
Do I need a dedicated circuit for a welder?: Yes, welders draw high inrush current when striking an arc and sustained load during use, and sharing a circuit with other equipment risks nuisance trips or an overloaded circuit. We size a dedicated circuit to the welder’s actual load.
Can you match the plug configuration to my specific welder?: Yes, we confirm the welder’s nameplate voltage, amperage, and phase before selecting the disconnect and plug configuration, so the installation matches the equipment rather than a generic setup.
Do you install welding disconnects for auto body and fabrication shops?: Yes, we install welding circuits and disconnects for auto body shops, fabrication shops, and manufacturing floors, sized to whatever welding equipment the shop runs.
How much does welding plug installation cost?: Cost depends on the welder’s voltage and amperage, distance from your existing panel, whether the panel has spare capacity, and the plug configuration required. We provide a clear quote after reviewing your equipment and panel.
